SEMITRAILER with CRANE
COBRA KR is the trailer with crane made-to-measure
STEEL body and chassis
Capacity up to 65 cbm
Wear resistant steel body and rear doors in Hardox/Xar HB450
High resistance steel chassis
Optimal balance of weight / strength
CRANE at choice
Chassis preparation for crane installation
Test and installation of crane on trailer chassis, upon request
Cooperation with all main crane manufacturers
ONE CENTRAL cylinder
Tipping system with a central hydraulic cylinder
Built-in design and round front side available on request for better aerodynamic and easy work with crane
TECHNICAL INFORMATION
Capacity up to 65 cbm
Designed and made to measure
European Type Approval
Crane at choice
Gervasi chassis rear lowered
3 SAF/ROR/JOST axles, fixes, 9 tons load capacity.
1° lifting axle with "Starting aid"
Nr.6 tyres 385/65R22,5 with iron discs
Spare wheel support mounted on the front side
Pneumatic suspensions
Full discs brakes diam. 430mm
ABS and EBS 2S/2M HALDEX / WABCO anti-block system
Electronic anti-tipping system HALDEX / WABCO
King pin 2"
Automatic fast deflating of suspensions at the opening of the doors
Pressure gauge for the load
Single rear mudguards in plastic with mud flap
Gervasi rear tipper body reinforced with fully welded original posts and beams, for scrap transport and collection
Rear lowered with straight loading floor
Floor in HB450 wear-resistant steel
Front/lateral sides in HB450 wear-resistant steel
Double leaf doors in HB450 wear-resistant steel
Lateral openings of the doors with accident prevention pneumatic locking
Rounded front side
Tipping by means of on frontal telescopic cylinder
Hydraulic system with 2 pipe for supply and return
Hooks and shaft for covering tarpaulin anchorage
Foldable bumper bar (hardox) with pneumatic control.
Nr. 01 toolbox in black plastic
Lateral underride protection
Reverse bip and lights
LED marker lights and rear lightings
Fire extinguisher 6 kg with relevant holder
Wheels keys and n.2 chocks with relevant holders
Sandblasting and body painting with RAL at choice.
MAIN OPTIONALS
Light alloy discs
Customized floor and sides thickness

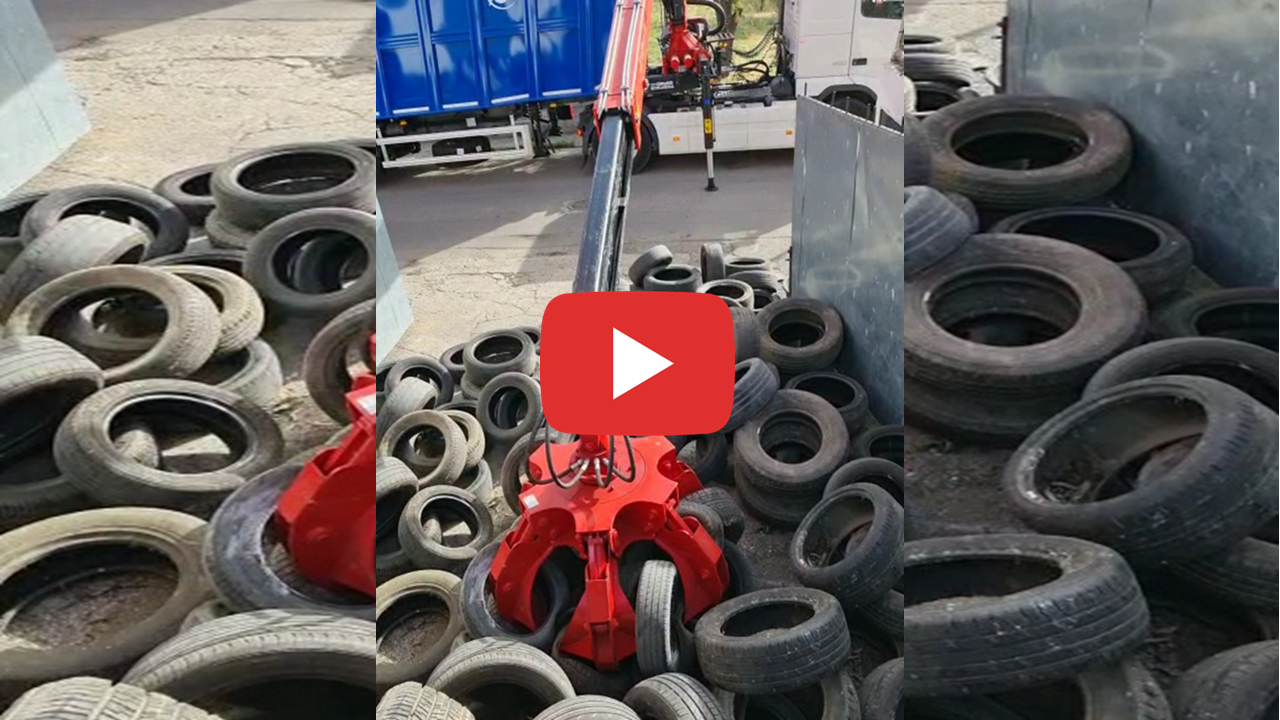

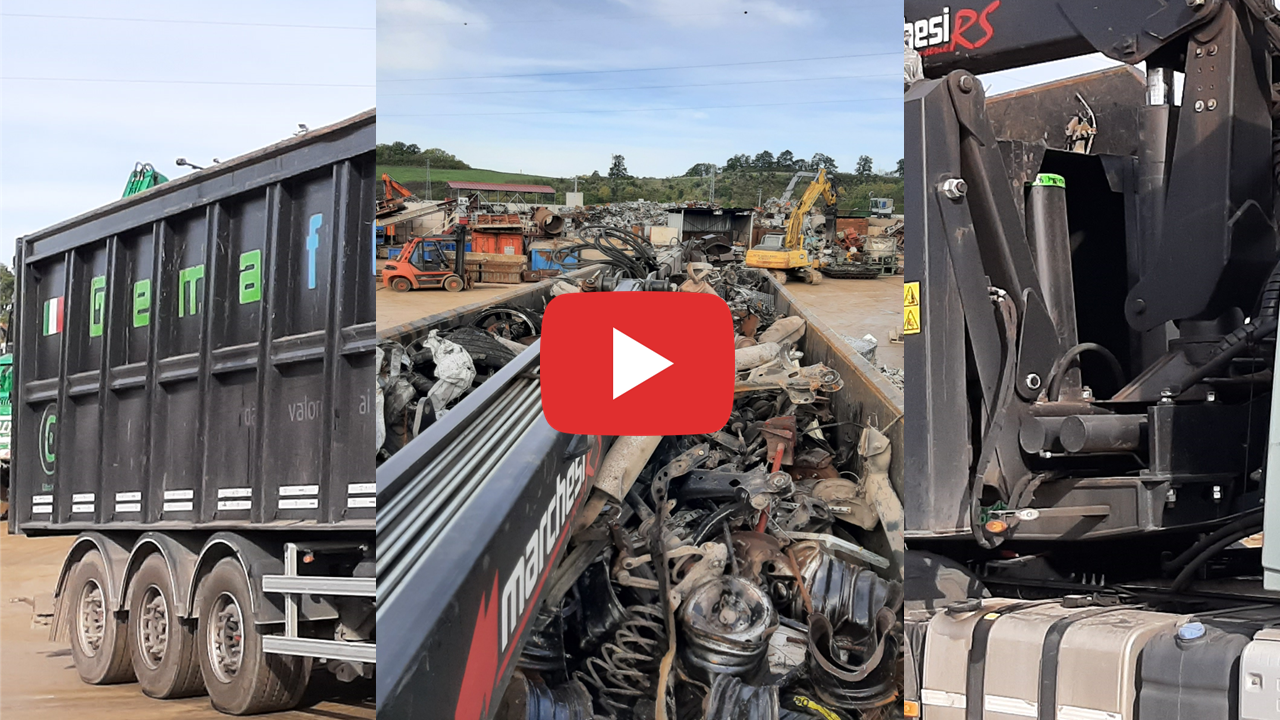

VIDEO
